Ebac Desiccant Dehumidifiers


Desiccant Dehumidifiers for use in low temperatures or where a low relative humidity is required

Dehumidification is possible using two possible principles, Condensation with refrigeration style dehumidifiers and Adsorption with desiccant dehumidifiers. Desiccant dehumidifiers perform exceptionally well when used in cooler climates, or when a low dew-point, deep drying or low humidity levels are required. Since Ebac desiccant dehumidifiers do not produce water, they will work effectively down to sub zero temperatures. We offer a range of Commercial Ebac Desiccant Dehumidifiers including models  DD200, DD300, DD400. Depending on the environment Ebac Desiccant Dehumidifiers can lower humidity to 4%rh. We also supply Remote Humidistats for accurate control.

For prices of all accessories click here

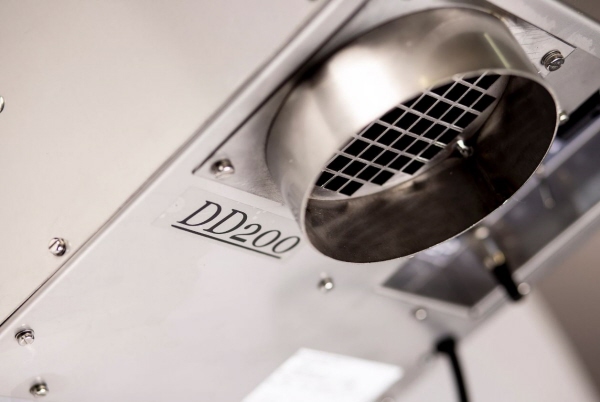

Ebac DD200 Desiccant Dehumidifier

In Stock
2/3 working day included. Next working day + £16
!

DD200 Desiccant Dehumidifier

Typical Extraction: 22L/Day
Nominal Effective Volume: 100m3
Operation possible down to 4%rh

The Ebac DD200 commercial & Industrial desiccant dehumidifier is the smallest desiccant dehumidifier within the Ebac range. Its compact, rugged, lightweight design facilitates easy transportation by one person and is easily accommodated within space restricted areas.The unit incorporates a PTC Heater ensuring maximum drying is immediately reached, and constantly maintained while the unit is running. In addition to the hours run meter, which shows the units  feature within the DD range of desiccant dehumidifiers, and a remote humidistat can quickly and easily be connected for automatic operation and control.

In stock
Brochure - Manual - Ebac DD200 General Assembly - 30-90% Humidistat Data - 0-100% Controller

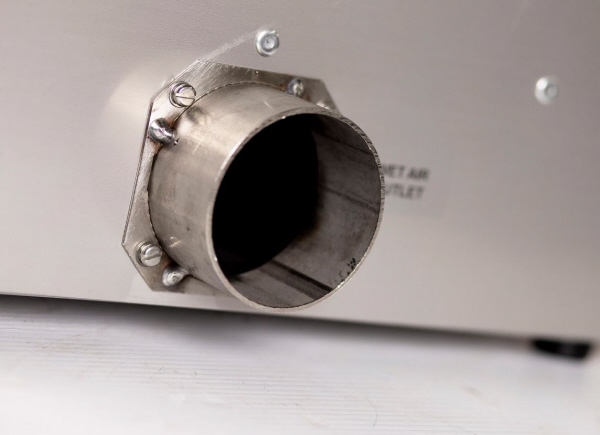

Click here for accessories such as high temp flexible ducting for wet air out and ducting adaptor plates.

Standard delivery included in price

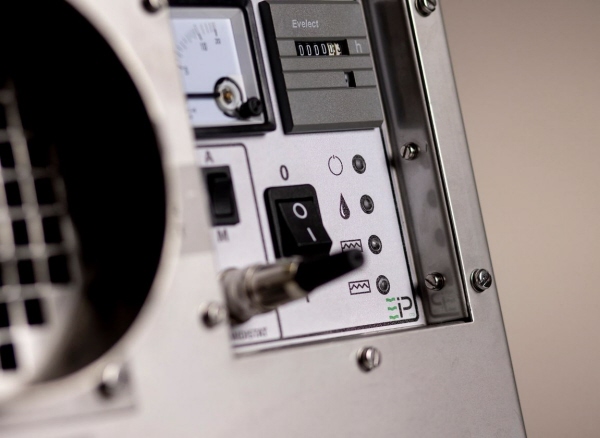

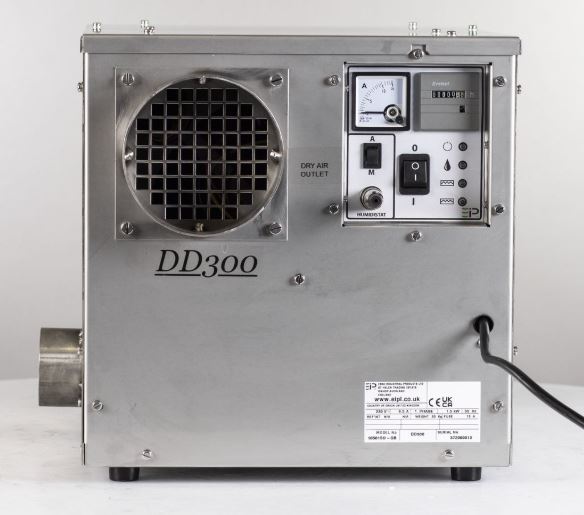

New Ebac DD300 Desiccant Dehumidifier

In Stock
2/3 working day included. Next working day + £16
!

DD300 Desiccant Dehumidifier

Typical Extraction: 29L/Day
Nominal Effective Volume: 200m3
Operation possible down to 4%rh

The Ebac DD300 commercial & Industrial desiccant dehumidifier is the smallest desiccant dehumidifier within the Ebac range. Its compact, rugged, lightweight design facilitates easy transportation by one person and is easily accommodated within space restricted areas.The unit incorporates a PTC Heater ensuring maximum drying is immediately reached, and constantly maintained while the unit is running. In addition to the hours run meter, which shows the units  feature within the DD range of desiccant dehumidifiers, and a 2-wire remote humidistat can quickly and easily be connected for automatic operation and control.

In stock
Brochure - Manual - Ebac DD300 General Assembly  30-90% Humidistat Data - 0-100% Controller

Click here for accessories such as high temp flexible ducting for wet air out and ducting adaptor plates.

Standard delivery included in price

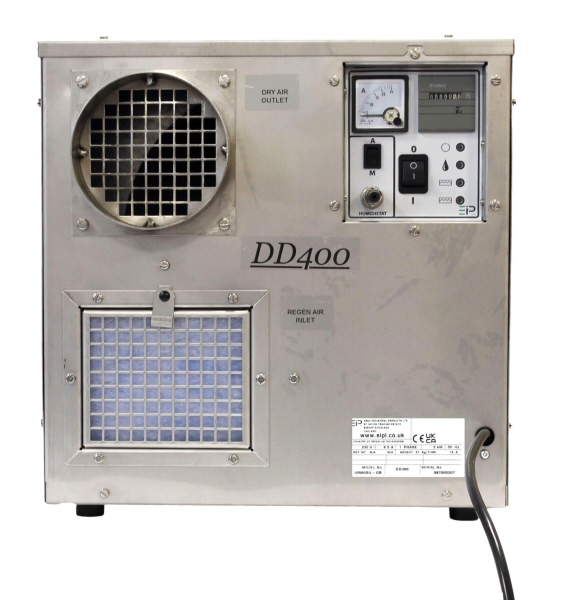

New Ebac DD400 Desiccant Dehumidifier

In Stock
2/3 working day included. Next working day + £16
!

DD400 Desiccant Dehumidifier

Typical Extraction: 34L/Day
Nominal Effective Volume: 300m3
Operation possible down to 4%rh

The Ebac DD400 commercial & Industrial desiccant dehumidifier is has compact, rugged, lightweight design facilitates easy transportation by one person and is easily accommodated within space restricted areas.The unit incorporates a PTC Heater ensuring maximum drying is immediately reached, and constantly maintained while the unit is running.  The dual air inlet feature of the DD400, is ideal for installations where the regeneration supply air, needs to be kept separate from the process supply air. In addition to the hours run meter, which shows the units running time, an ammeter is also incorporated in order to monitor the units drying effectiveness. Manual / Automatic control is a standard feature within the DD range of desiccant dehumidifiers, and a remote humidistat can quickly and easily be connected for automatic operation and control.
In stock

Brochure - Manual - Ebac DD400 General Assembly -
30-90% Humidistat Data - 0-100% Controller Manual

Click here for accessories such as high temp flexible ducting for wet air out and ducting adaptor plates.

Standard delivery included in price

Remote Humidistat 30-100%

In Stock
!

HDI Mini Wall Mounted Remote Humidistat

The hygrostat type HG Mini is used as an on-off controller to control the relative air humidity on the DD Desiccant range. It can also be used to control air humidifiers and dehumidifiers in offices and computer rooms. Other areas of use are storage of foodstuffs and luxury foods, cooling rooms for fruit and vegetables, greenhouses for gardening use, the textile industry, the paper and printing industry, the film industry and hospitals.

The hygrostats can be used almost anywhere that air humidity has to be regulated or monitored. The room hygrostat HG Mini-i is designed so that the adjusting knob and the scale are inside the housing. This makes unauthorized manipulation by third parties more difficult.

Technical Data

scale range ............................................................ 30...100%rh

measuring accuracy ........................................................ ±3%rh

range of operation .................................................... 35...95%rh

switching difference (micro-switch) ref. to 50%rh ............................................... approx. 4%rh

Price £116.00 + shipping £15 if purchased separately from the Desiccant unit.

Humidistat Data Sheet

Remote Humidistat 1-100%

In Stock
!



Tongdy Wall Mounted Remote Humidistat

The Tongdy hygrostat type controls humidity between 0-100% and is ideal where a a very low rh is required. It is used as an on-off controller to control the relative air humidity on the DD Desiccant range. It can also be used to control air humidifiers and dehumidifiers in offices and computer rooms. Available in integral or 2m external sensor models.

Other areas of use are storage of foodstuffs and luxury foods, cooling rooms for fruit and vegetables, greenhouses for gardening use, the textile industry, the paper and printing industry, the film industry and hospitals. The hygrostats can be used almost anywhere that air humidity has to be regulated or monitored.

Technical Data

scale range ............................................................ 0...100%rh

measuring accuracy ........................................................ ±5%rh

range of operation .................................................... 0...100%rh

switching difference (micro-switch) ref. to 50%rh ............................................... approx. 4%rh


Price £176.00 + shipping £15 if purchased separately from the Desiccant unit.


Wiring Notes:

Front of DD unit is a 3 pin plug. From the unit to controller connect a 0.5mm or less 2-core cable. Connect to pins 1 & 2 on the DD plug (solder connection is required). The connect to the controller will be on pins 3 & 4. Connect a 240vac supply to connector 1&2 on controller. No earth is required for the controller. The controller features 4 dip switches. Switch 1,2&4 should be in the off position. Switch 3 should be placed in the on position.

0-100% Controller Manual
